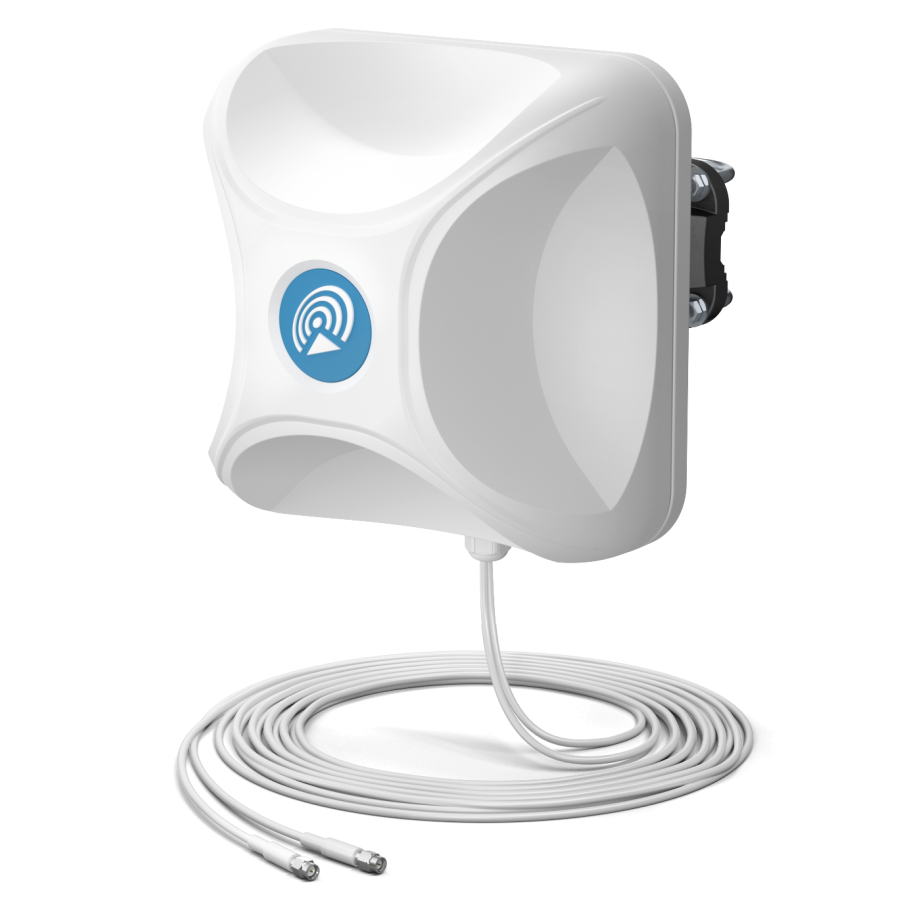

QuPanel 5G/LTE Global MIMO 2x2, 5m
nuovo prodotto
nuovo prodotto
in magazzino
?
173.26 €
173.26 €
Descrizione dettagliata
Specifiche tecniche
Prodotti compatibili
Specifiche
Rete mobile
Generazione di reti mobili
4G (LTE), 5G (NR)
Antenna
Progettazione dell'antenna
Pannello
Antenna mobile Gamma di frequenza e guadagno
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Guadagno dell'antenna mobile
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
Larghezza del fascio
80 °
VSWR
< 3
Impedenza
50 Ω
Connettore
Connettori RF
(2) SMA Male
Caratteristiche esterne
Materiale
Alluminio, Plastica ABS, Vetroresina, Politetrafluoroetilene
Codice di protezione dell'ingresso
IP67
Dimensioni
486 x 292 x 106 mm
Peso
2.8 kg
Temperatura di funzionamento
-40 °C a 80 °C
Ambiente
Esterno
Metodo di montaggio
Supporto a parete, Supporto del palo
