Marchio
Codice prodotto del produttore
PR1US540
Garanzia
?
24 mesi
EAN
4779051840632

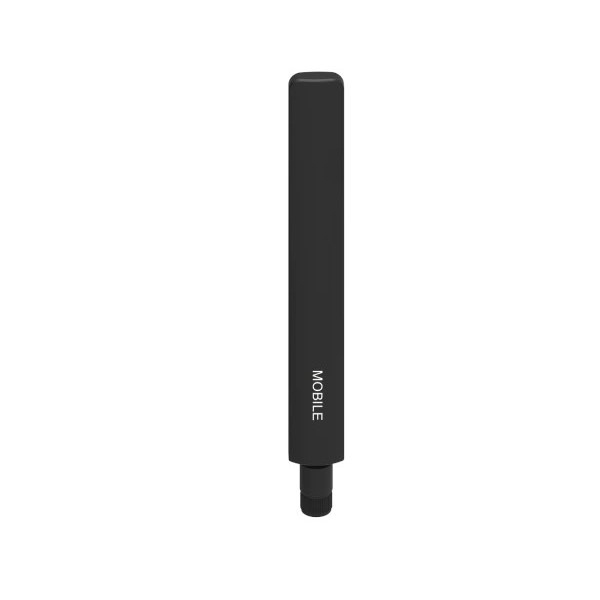

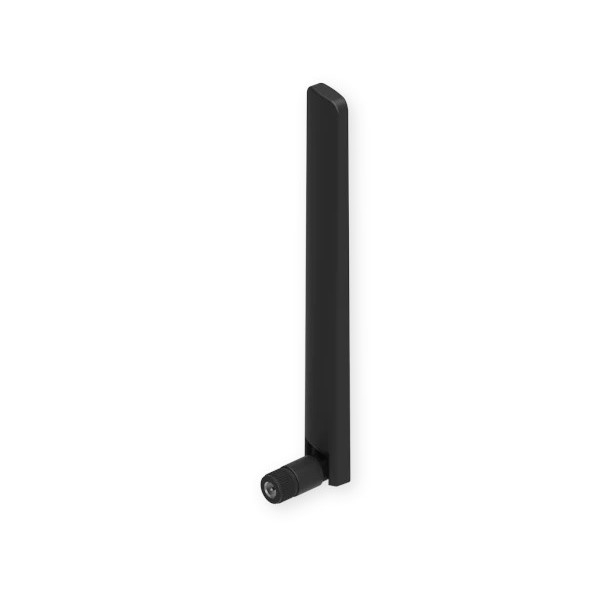

Teltonika 5G Mobile SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
in magazzino
?
4.33 €
4.33 €
Certified Teltonika Engineers
Official Teltonika Distributor
Descrizione dettagliata
Specifiche tecniche
Prodotti compatibili
Specifiche
Rete mobile
Generazione di reti mobili
5G (NR)
Antenna
Progettazione dell'antenna
Omni
Antenna mobile Gamma di frequenza e guadagno
0.617 - 0.960 (GHz) 4.5 (dBi), 1.41 - 1.61 (GHz) 4.5 (dBi), 1.71 - 2.69 (GHz) 4.5 (dBi), 3.3 - 7.125 (GHz) 4.5 (dBi)
Guadagno dell'antenna mobile
4.5 dBi, 4.5 dBi, 4.5 dBi, 4.5 dBi
Polarizzazione
Lineare
VSWR
< 3
Impedenza
50 Ω
Connettore
Connettori RF
(1) SMA Male
Caratteristiche esterne
Colore
Nero
Codice di protezione dell'ingresso
IP33
Peso
0.024 kg
Temperatura di funzionamento
-40 °C a 85 °C
Ambiente
Interno
Metodo di montaggio
Vite
Il pacchetto contiene
Unità
1 pz
